More precise joints.
Oval shape, larger glued area, more stability. The DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, DOMINOs in different sizes and a wide range of accessories for special applications. The result: extremely strong, invisible joints. And DOMINO can do much more: rack joints, frame joints, drawer joints, etc.
Patented routing principle unique to hand-held machines for accurate work with no kickbacks
Stops that are quick and easy to adjust, for accurate results
Rotation-proof joint with DOMINO dowels providing maximum stability
System accessories compatible with both DOMINO jointers
Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm
Achieve ideal results more quickly:
Positioned in next to no time with the innovative stop cap system. The routing height and depth can be adjusted in seconds using the preselection slider.
Convenient and safe:
Unique patented pendulum routing principle enables smooth, accurate work as well as holes without any scorch marks.
Systems get it done:
DOMINO, cutter, dowel up to 10 x 50 mm, flexible adjustment options and compatible system accessories for virtually unlimited jointing possibilities..
Main applications
Furniture manufacture
Shopfitting/Interior fitting
Window construction
Exhibition stand construction
For panel joins
For frame and rack joints
Performance features
Plug it
Removable, replaceable mains cable with safety lock for quick conversion.
CLEANTEC
Integrated bayonet fitting as the connecting element between the extractor and the tool.
Max. routing depth: 28 mm
DOMINO slot cutter dia.: 4, 5, 6, 8, 10 mm
Routing height adjustment: 5 - 30 mm
Mitre routing: 0 - 90 °
Depth stop for routing depth: 12, 15, 20, 25, 28 mm
Idle engine speed: 25 500 min⁻¹
Power consumption: 420 W
Weight: 3.2 kg
Dust extraction connection dia.: 27 mm
Noise and vibration values
Routing: Total vibration average, Ah: 3 m/s²
Routing: Standards series EN 60745:
Routing: A-weighted sound power level, LWA: 95 dB(A)
Routing: Uncertainty (noise) K: 3 dB
Routing: Uncertainty (vibration) K: 1.5 m/s²
Routing: A-weighted sound pressure level, LpA: 84 dB(A)

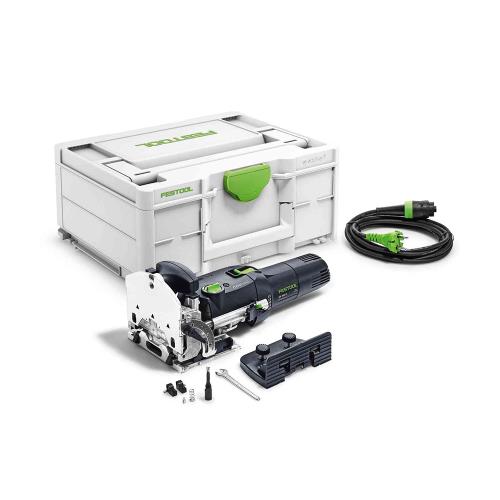

Items included
DOMINO cutter D5
support bracket
operation tool
in SYSTAINER SYS 2 T-LOC
