Connect with precision, stability, and versatility: the cordless DOMINO.
Every wooden joint has its perks. The DOMINO jointing system, which includes a cordless joining machine and DOMINO dowels, brings them all together. The unique pendulum routing motion of the DOMINO creates precise, twist-proof elongated holes. The DOMINO dowel combines the strength of slotted and tenon joints with the flexibility of flat dowels. It's perfect for both delicate and sturdy pieces in the home and outdoors. Plus, the cordless version with its comfy spade handle gives you extra ease without any cables to worry about.
Supplied body only. Batteries and chargers are sold separately.
FEATURES
Sorted: The routing depths are just right for the dowel lengths and panel materials
Flexible: The DOMINO core connectors and furniture fittings let you create sturdy furniture setups that can be taken apart again
System: Accessories are a perfect fit for the whole DOMINO system
Antistatic function: Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working
CLEANTEC: Integrated bayonet fitting as the connecting element between the extractor and the tool
FastFix: Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier
Electronic: Speed control for adjusting to all types of materials
Comes with

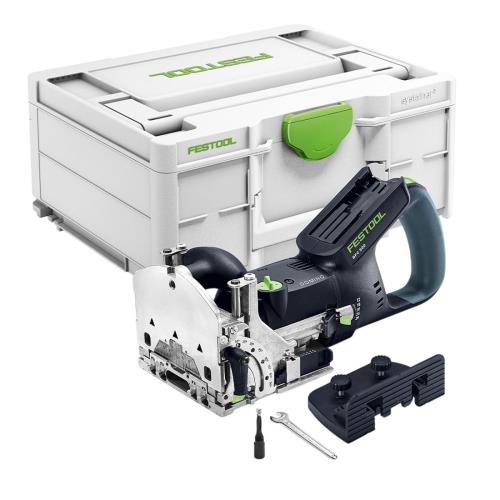

1x 578120 DOMINO DFC 500 E-Basic 18v Joining Machine Body Only
1x D 5-NL 20 HW-DF 500 DOMINO Router Cutter
1x ZA-DF 500/700 Additional Stop
1x Open Ended Spanner WAF 8
1x SYS3 M 237 Systainer Carry Case
Idle Engine Speed: 18 500 min⁻¹
Depth Stop For Routing Depth: 12. 15. 20. 25. 28 mm
Max. Routing Depth: 28.00 mm
Domino Slot Cutter Dia.: 4. 5. 6. 8. 10 mm
Routing Height Adjustment: 5 - 30 mm
Mitre Routing: 0 - 90 °
Dust Extraction Connection Diameter: 27 mm
Drive Type: Battery
Product Weight Without Accessories: 3.40 kg
Transport Weight Incl. Accessories: 6.00 kg
Battery Voltage (Rated Voltage): 18 V
NOISE & VIBRATION
Routing: Uncertainty (Vibration) K: 1.50 m/s²
Routing: Uncertainty (Noise) K: 1.50 dB
Routing: Total Vibration Average. Ah: 2.50 m/s²
Routing: Standards Series EN: 60745-2-19
Routing: A-Weighted Sound Pressure Level. LpA: 87.00 dB(A)
Routing: A-Weighted Sound Power Level. LWA: 98.00 dB(A)
