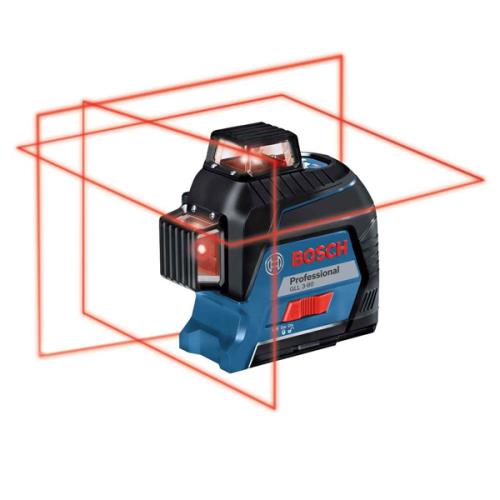

3 x 360° for visibility on a new level
High visual clarity is provided by high-powered diodes
3 x 360° lines allow for simultaneous horizontal and vertical levelling applications for highly efficient work
Intuitive user interface offers easy operation
in carrying case with 4 x battery (AA), accessory set
Order number: 0 601 063 S00
4 x 1.5 V LR6 battery (AA)
Laser target plate
Pouch
Carrying case
Working range* - 30m
Working range with receiver* - 120 m
Accuracy* - ± 0.2 mm/m
Laser diode - Line: 630 - 650 nm, < 10mW
Operating temperature, from - -10°C
Operating temperature, up to - 40°C
Operating temperature - -10 – 40°C
Storage temperature, from - -20°C
Storage temperature, up to - 70°C
Storage temperature - -20 – 70°C
Laser class - 2
Working range with receiver, value - 120m
Working range without receiver, value - 30m
Working range without receiver - 30 m
Self-levelling range - ± 4°
Levelling time - 4s
Dust and splash protection - IP 54
Power supply - 4 x 1.5 V LR6 (AA)
Operating time (max.) - 4 h in 3-line mode
Tripod thread - 1/4", 5/8"
Weight, approx. - 0.82kg
Colour of laser line - red
Projection - 3 x 360° line
Compatible laser receivers - LR 6 + 7
