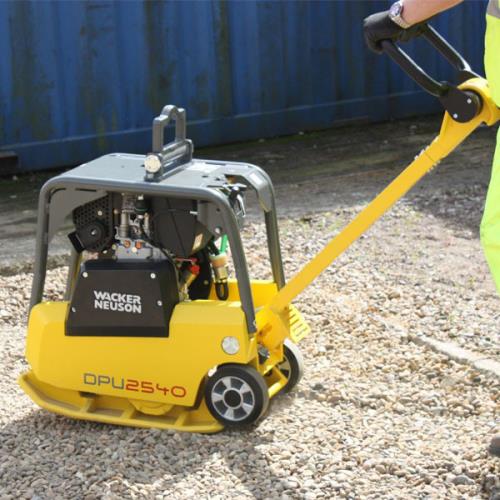

Wacker Neuson Dpu2540h Fwd/ Reversible Plate

Vibration Plate Dpu2540h
Wacker Neuson Wacker Neuson
CATEGORY: Small Reversible Plates

price : £4600.00 £3,833.33 (EX VAT)
This item has been classified as a heavy item and would incur an extra shipping charge.
Quantity :
Usually available within 5 - 7 working days. FREE POSTAGE TO UK MAINLAND ON ORDERS ABOVE £90.00 EXCLUSIONS MAY APPLY SEE TERMS.

For VAT exempt Export enquiries please contact us PRIOR to ordering

Recommended Alternatives

These all-rounders for applications such as interlocking paving stones, service trenches, gardening and landscaping architecture as well as maintenance jobs are the only vibratory plates with integrated wheel sets for maximum mobility. These plates are also extremely reliable. Their robustness as well as the sum of many well thought out details make sure of this. Amongst these details we find the throttle lever that retracts for its protection or an especially job site oriented fuel tank pipe. And then there is a kind of “mobility warranty”, because the wheel set is not only always ready for use but also extremely long-lasting.

Operating Weight 160 kg

Shipping Weight Incl. Packaging 172 kg

Shipping Size L x W x H 760 x 470 x 1290 mm

Baseplate (W x L) 400 x 703 mm

Working Width 400 mm

Machine Height (without guide handle) 736 mm

Working Height of Handle 800 - 1143 mm

Baseplate Thickness 10 mm

Max. Centrifugal Force 25 kN / 5625 lbf

Vibration Frequency 90 Hz / 90 vpm

Max. Forward / Reverse Travel 21 m/min

Max. Gradeability (depending on soil) 30%

Compacted Area (depending on soil) 504 m2/h

Engine Hatz 1B20 Air-Cooled Single Cylinder 4-Stroke Diesel Engine

Max. Rated Power @ Rated Speed* 3.5 kW / 4.6 hp @ 3600 rpm

Power Rating Specification DIN ISO3046

Rated Power Output 1.5 kW / 2.01 hp @ 2800 rpm

Displacement 243 cm3

Fuel Consumption 0.4 litres/h

Tank Capacity 3 litres

Max. allowable tilt of engine in continuous operation 25°
