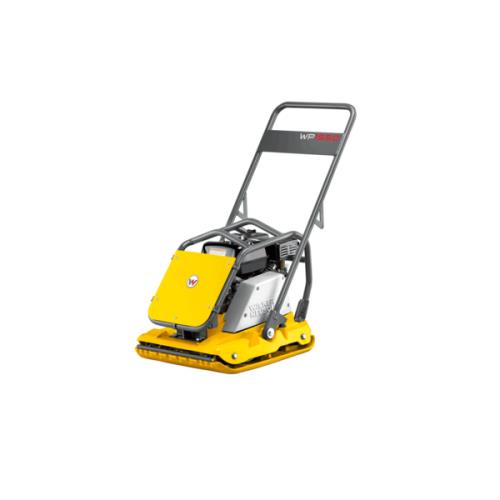

The vibratory plates of the WP range are extremely compact machines, which are perfect for compacting asphalt and interlocking paving stone, as well as the compaction of mixed soils in very confined spaces.
They are particularly useful for the construction of paths, as well as horticulture and landscaping. The perfect combination of optimally designed base plate and guide handle achieves superior manouevrability.
These machines are easy to guide around rocks and manhole covers, or along curbs, gutters, guide rails and buildings.
Features
Perfect asphalt compaction. The tapered edges of the base plate minimise the formation of track marks when turning the vibratory plate.
Comfortable surface compaction. The tapered base plate makes spot compaction easy.
Robust design minimises maintenance. The v-belt drive with all-round protection ensures longer belt life.
The base plate is made of wear resistant ductile graphite iron.
Three handling points in the bracket make transport easy and the folding guide handle turns it into a compact unit.
Operating height 632mm
Size of base plate (W x L) 500mm x 586mm
Operating weight 85kg
Compacted area (soil) 870m2/h
Forward speed (soil) 29m/min
Vibration frequency 98Hz
Max. centrifugal force 15kN
Honda GX 160 engine
Fuel tank capacity 3.7 Litres
Fuel consumption 1.8 l/h
Power transmission from drive motor via automatic centrifugal belt drive direct to exciter.
