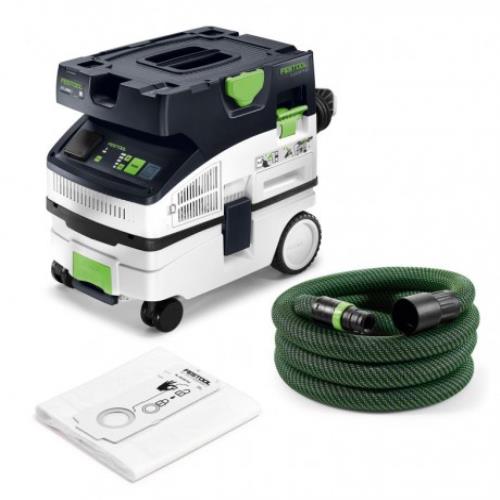

Low weight, compact dimensions and a host of innovative details – the CTL MINI compact dust extractor impresses in all aspects. It has intuitive touch operation, a smooth suction hose and a level storage area for tools and consumables. Manual dedusting and being able to replace the main filter from the outside ensure long-lasting work that protects your health. Integrated Bluetooth® technology starts the mobile dust extractor automatically via the Bluetooth® battery pack or the optional remote control. The internal hose holder, the Systainer T-LOC coupling and the practical cord holder ensure tidiness and speed. Ideal and convenient for clean air during service and installation work.
Mobile: Ideal for use on the go thanks to compact dimensions, low weight and robust chassis.
Intuitive: Touch operation for intuitive control of the extractor.
Automatic electrical outlet module: For corded power tools. Starts up the power tool and automatically starts up your extractor too.
Clever: Simple replacement of the main filter from the outside.
Smart: The integrated Bluetooth® technology starts the dust extractor automatically via Bluetooth® battery packs or remote control.
Smooth suction hose: with conical geometry for high suction power and seamless processes without catching.
Convenient: T-LOC function makes it easy to install Systainers on the mobile dust extractor.
Powerful: Consistently high suction power thanks to compact high-performance turbine – can be set to five levels.
Antistatic function: Prevents static developing during work.
Neat and tidy: Hose holder and cable winder for greater tidiness and safety
Gross equals net: Maximum container volume utilisation
Flat storage area: Ideal for storing tools and working materials
Manual dedusting: Keep working until the filter bag is full thanks to manual dedusting
Suitable for wet extraction: When absorbing water, the Level Stop shuts down the drive in good time and the motor remains protected
Approval: Dust category L
Main Applications
For dust with limit values > 1 mg/m³On-site extraction for electric power tools for minor or brief sanding, routing, sawing and drilling workIdeal for mobile use in service and installation work and for final cleaningSuitable for both wet and dry extraction (special wet filter required for wet extraction)
Supplied with:
main filter, SC FIS-CT SELFCLEAN filter bag,
smooth suction hose diameter 27/32 x 3.5 m AS/CTR
Power consumption 350 – 990 W;
Max. volume flow 3700.00 l/min;
Max. vacuum 24000 Pa;
Filter surface area 3508 cm²;
Rubber-insulated mains cable 7.50 m;
Container/filter bag capacity 10.00/7.50 l;
Dimensions (L x W x H) 472 x 322.00 x 455.00 mm; Max. appliance socket connected load 770 W; Dust class L; Cable length 7.50 m; Product weight without accessories 11.22 kg; Transport weight incl. accessories 13.9 kg; Drive type Mains; Technology Bluetooth®
Dust extraction: Uncertainty (noise) K 3.00 dB;
Dust extraction: Standards series EN 60745 60335-2-69;
Dust extraction: A-weighted sound pressure level, LpA 70.00 dB(A)
