Fully automatic filter cleaning.

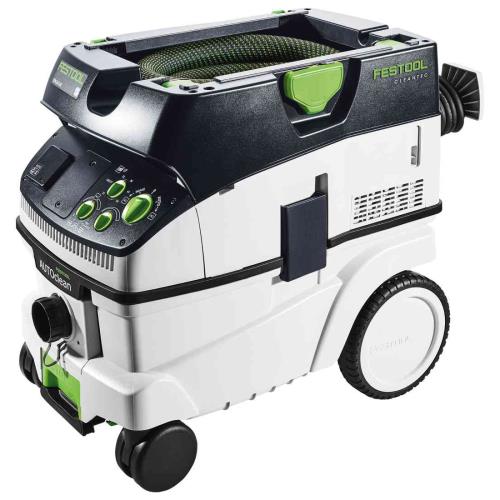

No more clogged filters – the AUTOCLEAN (AC) automatic main filter cleaning keeps the filter clean and provides a continuously high suction power. With its huge container capacity of 26 l, the CLEANTEC CTM 26 AC provides maximum volume and a high degree of flexibility. Equipped with swivelling castor wheels and rear wheels for optimum mobility. It also has a locking brake that provides stability on any surface as well as during transport. The flat filter fully integrated in the suction head ensures the full volume is utilised: This means that the gross and net container volumes are virtually identical. The extremely compact high-performance turbine provides the right suction power. A 3900 l/min volume flow means that nothing remains except clean air. Approved for dusts in dust class M.
AUTOCLEAN automatic main filter cleaning system with infinitely adjustable cleaning intervals for consistently high suction power
Maximum utilisation of the container volume – the gross volume is the same as the net volume
Smooth suction hose and optimised SYS-Dock with cord holder and T-LOC function for conveniently connecting SYSTAINERs to the mobile dust extractor
Antistatic function prevents static developing during work
Constantly high suction because of the compact high performance turbine
Attachment of Systainers via Sys-Dock
Hose garage and cable windup for greater tidiness and safety
Economical because of the optimal use of the available volume with a SELFCLEAN filter bag in the container
container/filter bag capacity 26/24 l
with AUTOCLEAN function
approved for dust class M
Achieve ideal results more quickly:
Consistently high suction power, longer work intervals and significant time savings thanks to automatic filter cleaning.
Convenient and safe:
One rotary switch for all settings: Length of cleaning intervals, spontaneous cleaning or automatic final clean after the machine is switched off.
Systems get it done:
Can be coupled with SYSTAINERS and SORTAINERS on the SYS dock. Plug-in system for up to three additional modules – power, compressed air and EAA.
Optional extension.
Depending on requirements, the extractor can be equipped with additional modules, such as the compressed air module, an electrical outlet with continuous power, automatic electronic switch-on/shut-off switch, or an energy box module.
For dusts in class M.
The extractor is approved for dust class M. It is suitable for extracting harmful dusts with limit values > 0.1 mg/m³. The extractor features a large red label that indicates the dust class.
Extremely versatile.
For dust, dirt and water. When absorbing water, the LevelStop shuts down the drive in good time and the motor remains protected. The wet filter can be set in place with just a few hand movements.
Filter cleaning. Automatic.
AUTOCLEAN (AC) automatically cleans the main filter. The suction power therefore remains high at all times. Benefits: Time savings, longer work intervals and also less maintenance effort, a longer service life and cost savings.
Manual cleaning.
Even heavily clogged filters can be cleaned: When the container inlet is closed manually with the ComfortClean sealing slide, a strong vacuum is generated, which cleans the filter with maximum force.
Adjustable according to requirements.
The cleaning intervals are set infinitely using the rotary switch: 0 = Cleaning off, 2 min., 1 min., 30 sec. and 15 sec. The shorter the intervals, the more intensive the cleaning. In the "AUTO" setting, the filter is automatically subjected to a final cleaning process once the machine is shut down. In the "AC" setting, the cleaning process is activated immediately.
Safe transport.
Accessories and tools in the SYSTAINER and SORTAINER can be easily attached to the extractor via the SYS dock.
Everything in perfect order.
The power cable and suction hose are stored tidily and optimally protected in the permanently integrated Festool hose holder and cable holder.
High suction power.
Extremely powerful, compact and light: The high-performance turbine provides considerably higher suction power and requires very little space.
Tear-resistant fleece filter bag.
The fleece filter bags are self-cleaning because they collapse after the extractor is turned off. This SELFCLEAN effect guarantees consistently high suction performance until the bag is full to capacity.
Disposable bag.
Perfect for dust extractors with AUTOCLEAN, e.g. for extracting coarse dirt and chips. Dust-free disposal via a lock on the disposable bag.
Fast maintenance.
An optimised approach to servicing saves time and money by shortening the time required for repairs. The structural design allows faster access to the spot where repairs are needed.
Transport-safe.
The locking brake ensures that the extractor will remain in place. The large wheels prevent the extractor from tipping over. The wheels can be turned, and the material that they are made from is resistant to wear. Because of the location of its centre of gravity, the extractor is easy to carry.
Large capacity.
The filter bag is free to unfold because of the flat filter and the smooth inner contours of the container. This allows the bag to be filled uniformly and a nearly 100% utilisation of the filter bag volume.
Optional extension.
Depending on requirements, the extractor can be equipped with additional modules, such as the compressed air module, an electrical outlet with continuous power, automatic electronic switch-on/shut-off switch, or an energy box module.
For dusts in class M.
The extractor is approved for dust class M. It is suitable for extracting harmful dusts with limit values > 0.1 mg/m³. The extractor features a large red label that indicates the dust class.
Extremely versatile.
For dust, dirt and water. When absorbing water, the LevelStop shuts down the drive in good time and the motor remains protected. The wet filter can be set in place with just a few hand movements.
Filter cleaning. Automatic.
AUTOCLEAN (AC) automatically cleans the main filter. The suction power therefore remains high at all times. Benefits: Time savings, longer work intervals and also less maintenance effort, a longer service life and cost savings.
Manual cleaning.
Even heavily clogged filters can be cleaned: When the container inlet is closed manually with the ComfortClean sealing slide, a strong vacuum is generated, which cleans the filter with maximum force.
Adjustable according to requirements.
The cleaning intervals are set infinitely using the rotary switch: 0 = Cleaning off, 2 min., 1 min., 30 sec. and 15 sec. The shorter the intervals, the more intensive the cleaning. In the "AUTO" setting, the filter is automatically subjected to a final cleaning process once the machine is shut down. In the "AC" setting, the cleaning process is activated immediately.
Main applications
For dust with limit values > 0.1 mg/m³
Flexible and clean in the workshop and on-site thanks to compact design
Integral automatic electronic switch-on/shut-off for extraction from electric power tools
Suitable for both wet and dry extraction
Performance features
CLEANTEC
Integrated bayonet fitting as the connecting element between the extractor and the tool.
AUTOCLEAN
AUTOCLEAN automatic main filter cleaning system with infinitely adjustable cleaning intervals.
Electronic
Speed control for adjusting to all types of materials.
Antistatic function
Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.
FlowDetect
Health protection: The flow sensor checks for a minimum air speed of 20 m/sec and issues a warning if the air speed falls below this value.
Smooth sleeve hose
With a smooth exterior which allows it to slide over surfaces perfectly
Max. volume flow: 3900 l/min
Max. vacuum: 24000 Pa
Filter surface area: 6318 cm²
Rubber-insulated mains cable: 7.5 m
Container/filter bag capacity: 26/24 l
Max. appliance socket connected load: 2400 W
Dimensions (L x W x H): 630 x 365 x 540 mm
Power consumption: 350 – 1 200 W
Weight: 14.7 kg
Noise and vibration values
Dust extraction: A-weighted sound pressure level, LpA: 71 dB(A)
Dust extraction: Standards series EN 60745:
Dust extraction: Uncertainty (noise) K: 3 dB
Items included
High-performance main filter
SELFCLEAN filter bag
disposal bag
smooth suction hose dia. 27/32 x 3.5 m AS/CT
end cap for intake adapter
hose holder
Sys-Dock with T-LOC function
cable holder
in carton
