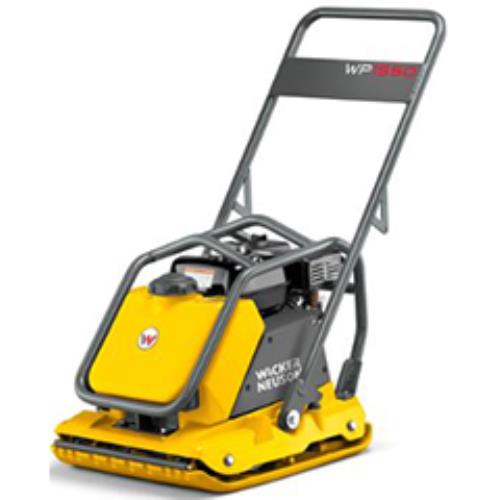

Wacker Neuson Wp1550aw Single Direction Plate

Honda Engine 500MM X 568MM with water kit
Wacker Neuson Wacker Neuson
PART NUMBER: WACTWP1550AW
CATEGORY: Single Direction Plates

price : £1661.99 £1,384.99 (EX VAT)
This item has been classified as a heavy item and would incur an extra shipping charge.
Quantity :
In stock, delivery 3 - 5 working days. FREE POSTAGE TO UK MAINLAND ON ORDERS ABOVE £90.00 EXCLUSIONS MAY APPLY SEE TERMS.

For VAT exempt Export enquiries please contact us PRIOR to ordering

The high-performance vibratory plates of the WP series are the professionals’ first choice for compacting asphalt and interlocking paving stones as well as for the compaction of mixed soils in confined spaces.

The robust and durable design makes them the ideal tools for continuous professional use in road construction.

They are perfectly suited for the compaction of sandy and granular subbases for sidewalks, roads and parking lots.

Low pollutant emissions protect the operator and improve working conditions.

The vibratory plates of the WP series can be moved easily to the desired location on the construction site by using the optional wheel set.

Excellent maneuverability and stability during lateral operation due to additional handles at the protection frame.

Robust and low-maintenance design ensures a long service life: a solid frame protects the engine; wear-resistant belts.

Sprinkler system: optimum water coverage over the entire width of the base plate; automatic flow control during vibration only.

Made in Germany – robust and reliable in design and construction

Tapered and rounded edges minimize the formation of undesired edges when turning the base plate and provide a smooth surface.

Made of wear resistant ductile cast iron for a long service life.

First class results in asphalt compaction due to the very high quality base plate.

The forward pivoting handle allows for operations such as upward pulling of the plate when working on a slope.

Due to the central mounting of the guide handle the plate can be turned quickly and easily.

Optimum protection of engine and water tank reduces repair costs.

The robust lifting eye is integrated in the protection frame for safe lifting.

Ideal for lateral operation along edges.

The 11 liters tank capacity reduces time for refills and thus increases productivity.

Easy filling due to the large tank lid.

Optional for all models of the WP series.

OPERATING FLUIDSMetric
Tank capacity3,60 l
Exciter oil volume0,15 l
Exciter oil type75W-90 API GL-4
ENGINEMetric
Inclined position max.20,0 °
Fuel managementCarburettor
Engine operating modefour-stroke
Operating Engine speed3.520 1/min
Fuel consumption0,80 L/Std
Standard (Power max.)SAE J1349
Standard (Effective power)ISO 3046 IFN
Nominal Engine speed3.600 1/min
Electrode distance0,7 - 0,8 mm
Effective power3,6 kW
Oil filling max.0,60 l
Battery capacity (nom. value)0 Ah
Air cleanerCyclone air filter
Power rating max.3,6 kW
Coolingair cooling
Exhaust-gas limitEPA4/08
Oil specificationSAE 10W-30
Starter battery Voltage0 V
Engine speed (Power max.)3.600 1/min
Starter typeRecoil starter
Oil filling min.0,60 l
Operating power2,9 kW
Engine typeGasoline engine
Cylinder1
Engine ManufacturerHonda
Standard (Operating power)ISO 3046 IFN
Cylinder capacity163 cm3
FuelGasoline
Spark plug(s)NGK BP-6 ES
Oil volume incl. filter change0,60 l
MECHANICAL - OUTPUT DETAILSMetric
Vibrations5.880 1/min
Gradeability36,4 %
TransmissionFKK-KR
Centrifugal force15,000 kN
Vibrations (Hz)98 Hz
Area capacity870 m2/h
Forward Running29,00 m/min
ELECTRICAL SYSTEMMetric
Coding options-
Recommended Battery Typ-
ENVIRONMENT DATAMetric
Operating temperature range-15 - 40 °C
Sound level LpA (Standard)EN 500-4
Sound power LWA, guaranteed108,0 dB(A)
Storage temperature range-15 - 40 °C
HAV summation (average value)5,3 m/s2
Uncertainty in measurement HAV0,5 m/s2
HAV summation (Standard)EN 500-4
Sound level LpA94,0 dB(A)
Sound power LWA (Standard)EN 500-4, 2000/14/EG
Sound power LWA, measured107,0 dB(A)
MECHANICAL DETAILSMetric
Operating weight96,0 kg
Ground clearance527 mm
Height963 mm
Width498 mm
Length Drawbar in op. pos.877 mm
Custom AttributesMetric
Model seriesWP
