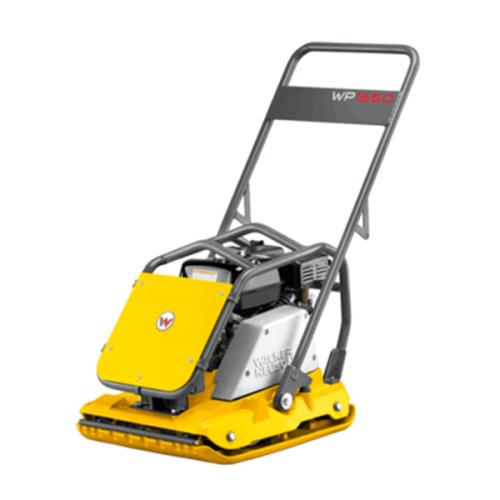

Wacker Neuson Wp1540a Single Direction Plate

Honda Engine 400mm X 586mm
Wacker Neuson Wacker Neuson
CATEGORY: Single Direction Plates

Item has been replaced by the WACKER NEUSON VP1340A SINGLE DIRECTION PLATE
price : £1450.00 £1,208.33 (EX VAT)
This item has been classified as a heavy item and would incur an extra shipping charge.
no longer available

For VAT exempt Export enquiries please contact us PRIOR to ordering

These plates are optimally suited for a variety of compaction applications thanks to their high speed of advance and simple maneuverability

Newly designed “low-vibration” guide handle greatly improves operator comfort and minimizes operator fatigue.

Completely enclosed belt protected by a lightweight beltguard for reduced wear and minimal service.

Ergonomically designed lifting handles make loading and unloading from transport vehicles easier for the operator.

Heavy-duty shockmounts on engine console dampen vibrations thereby reducing wear on the components.

Operating weight 75 kg

Working width 400 mm

Baseplate (W x L) 400 x 586 mm

Engine Honda GX160

Engine Type Air Cooled, 4-Stroke

Max. Rated Power @ Rated Speed* 3.6 kW @ 3600 rpm

Oil tank capacity 0.6 litres

Engine Speed 3600 rpm

Cylinder Single Cylinder

Fuel tank capacity 3.6 litres

Fuel consumption 1.8 litres/h

Centrifugal force 15 kN

Vibrating Frequency 97 Hz / 5800 vpm

max. travel speed 29 m/min

max. gradeability 30%

max. area compaction performance 606 m2/h

Lowest working height 532 mm

working length 995 mm

Exciter Speed 5800 ± 100 rpm

Exciter Lubrication 236.59 ml

Specifications may change due to continuous product development.

* Actual power output may vary due to conditions of specific use
