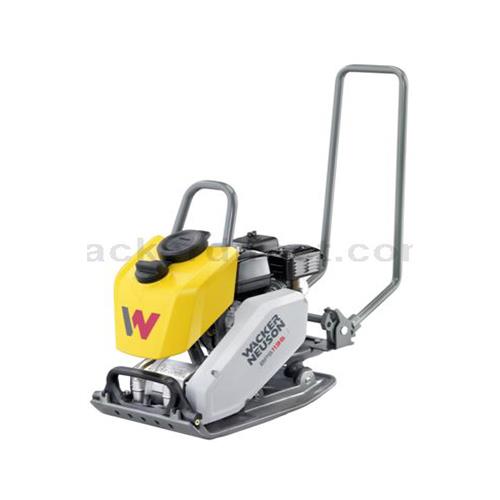

The BPS series is characterized by its excellent driving characteristics.
Moving and turning these vibratory plates on soil and fresh asphalt is extremely comfortable and leaves no marks.
Clean terminations at curbs are also easily made due to the angular side profile of the base plate.
The guide handle responds clearly to steering movements and yet achieves low hand-arm vibrations of less than 5 m/s², enabling long and comfortable working.
Excellent driving characteristics: Whether on asphalt or ground - the BPS maneuvers effortlessly and delivers flawless surfaces.
Easy transport: A large crane eye and wide, ergonomically designed carrying handles make moving and loading the machine easy and comfortable.
Maintenance-free: The BPS series is equipped with an extremely robust V-belt and has bearings with lifetime lubrication. This makes it virtually maintenance-free.
Accessories: Wheel set and paving mat complete the application possibilities of the BPS.
Weight: 63,0 kg
Ground clearance: 663 mm
Height: 663 mm
Width: 350 mm
Length Drawbar in op. pos.: 930 mm
Inclined position max.: 20,0 °
Fuel management; Carburettor
Engine operating mode: four-stroke
Operating Engine speed: 3.600 1/min
Fuel consumption: 1,00 L/Std
Nominal Engine speed: 3.600 1/min
Effective power: 2,6 kW Oil filling max.0,60 l
Air cleaner: dry air filter
Power rating max.: 2,6 kW
Cooling: air cooling
Exhaust-gas limit: EPA4/08
Oil specification: SAE 10W-30
Engine speed (Power max.); 3.600 1/min
Starter type: Recoil starter
Oil filling min.: 0,60 l
Operating power: 2,1 kW
Engine type: HONDA Petrol engine
Fuel Petrol
Spark plug(s): NGK BP-6 ES
Metric Vibrations: 5.880 1/min
Transmission FKR Centrifugal force: 11,000 kN
Vibrations (Hz): 98
Hz Area capacity: 546 m2/h
Forward Running: 26,00 m/min
Operating temperature range: -15 - 45 °C
Sound power LWA, guaranteed: 105,0 dB(A)
Storage temperature range: -15 - 40 °C
HAV summation (average value): 4,5 m/s2
Uncertainty in measurement HAV: 0,5 m/s2
HAV summation (Standard): EN 500-4
Sound level LpA93,0 dB(A)
Sound power LWA (Standard)EN 500-4
Sound power LWA, measured: 104,0 dB(A)
Operating weight: 63,0 kg
Ground clearance: 663 mm
Height: 663 mm
Width: 350 mm
Length Drawbar in op. pos.: 930 mm
