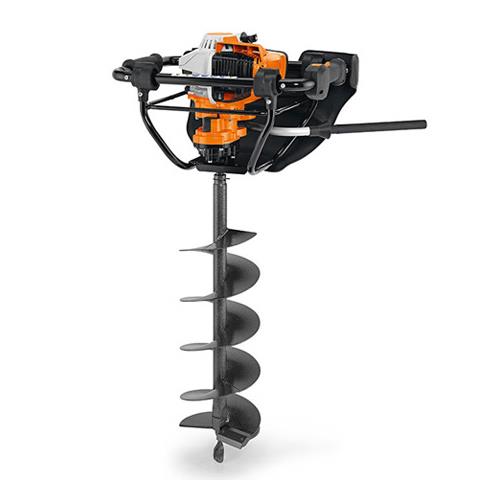

One-man earth auger with QuickStop drill break. 4-MIX® engine with enlarged fuel tank, low-vibration handle frame, control handle with stop button, long-life air filter system, large support cushion.
4-MIX® engine
The 1.4 kW STIHL 4-MIX® engine combines the advantages of a two-stroke and a four-stroke engine - it is economical, smooth, responsive and powerful. It produces less emissions and doesn't need an oil service.
Long-life air filter system
Together with the compensator that is integrated into the carburettor, the long-life air filter system offers long cleaning intervals and reliable engine protection.
QuickStop drill brake
The Quickstop drill brake release lever stops the drill immediately when it gets stuck in the ground, It also serves as a reverse rotation lock - a stuck bit can then be easily unscrewed manually.
Hip padding
During use the hip pad is positioned comfortably close to the body or leg of the operator, making the auger safe and easy to use.
Vibration dampening frame
The vibration-dampening frame with four vibration elements provides comfortable working and reduces fatigue when drilling. The engine is positioned separately from the handle frame, allowing easier working over longer periods.
Multi-function handle
All operating elements for the engine control are integrated into the right-hand handle, enabling the drill to be operated by finger pressure. The hand always remains in a working position.
Capacity: 2.22cu-in
Capacity: 36.3cm3
Performance: 1.9Um
Performance: 1.9PS
Performance: 1.4kW
Weight 1): 10kg
Weight 1): 22Pounds
Sound pressure level 2): 92dB(A)
Vibration value, left 3): 1.7m/s2
Vibration value, right 3): 2m/s2
Spindle speed 1: 200Um
Fuel tank capacity: 24oz
Tank volume: 0.71l
Speed at maximum power: 8.500Um
1) Without fuel, without drilling tool
2) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
3) K-factor according to DIR 2006/42/EC = 2m / s ²
