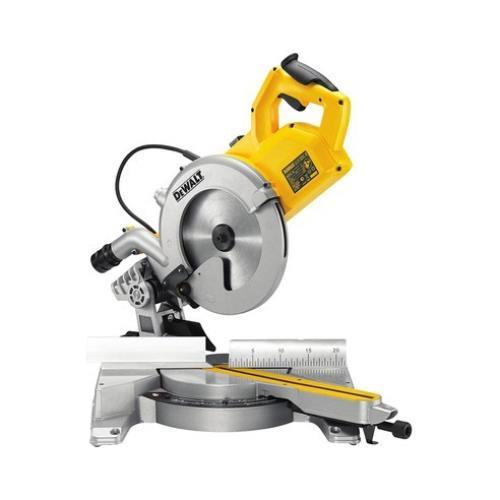

Built on classic pull saw design improved and updated for the modern user
New 1850 Watt motor for powerful cutting in all materials (1650 Watt Low Voltage version UK Only)
Dust extraction specifically designed to meet the needs of the professional user in heavy use applications, protection from airborn dust particles minimises health risk over long periods
The base and fence have been machined to meet the accuracy requirements of the most demanding applications
New head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°
Sliding left hand fence with measuring scale for improved material support and management
Compact internal rail design for huge cutting capacity in a highly transportable format
XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity
Power Input: 1850 Watts
Power Output: 1050 Watt
Blade Speed: 4300 rpm
Blade Diameter: 250 mm
Blade Bore: 30 mm
Bevel Capacity: 48 °
Mitre Capacity [right/left]: 50/50 °
Cutting Capacity at 90°/45° (W x H): 305x58 mm
Cutting Capacity at 90°/90° (W x H): 305x85 mm
Cutting Capacity at 90°/90° (W x H): 305x85 mm
Cutting Capacity at 45°/90° (W x H): 215x85 mm
Cutting Capacity at 45°/90° (W x H): 215x85 mm
Cutting Capacity at 90°/45° (W x H): 305x58 mm
Max. Cutting Capacity at 45°/45°: 215x58 mm
Max. Depth of Cut [Saws]: 85 mm
Weight: 17.2 kg
Depth: 465 mm
Length: 615 mm
Height: 390 mm
Hand/Arm Vibration - Cutting Wood: 2.4 m/s²
Uncertainty K 1 (Vibration): 1.5 m/s²
Sound Power: 107.2 dB(A)
Sound Power Uncertainty: 3 dB(A)
Sound Pressure: 94.2 dB(A)
Sound Pressure Uncertainty: 3 dB(A)
STANDARD
TCT tooth saw blade
Material Clamp
Blade Allen Keys
