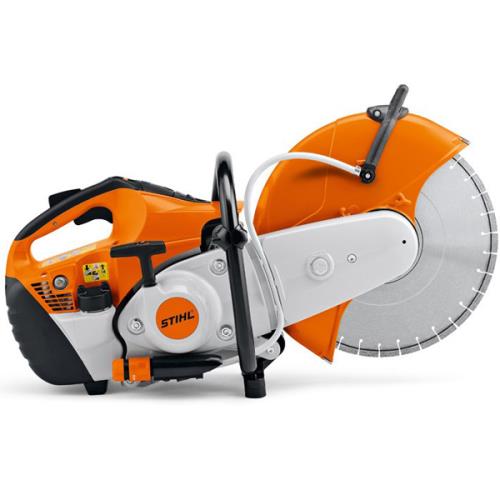

Stihl TS 500i Innovative 3.9kW cut-off saw with electronically controlled fuel injection
Unique STIHL Injection engine technology for 350 mm cutting wheels. Easy to start; powerful torque.
Fully-equipped with long-life air filter system and electronic water control.
Can be operated by hand or with the FW 20 cart. Supplied with abrasive cutting wheel.
Reduced-emission engine technology - 2-stroke engine with stratified charge.
A fuel-free layer of air is created between the burned charge in the combustion chamber and the fresh charge in the crankcase, reducing the amount of fuel lost during the charge cycle.
This results in more power with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines and significantly reduced exhaust emissions.
STIHL ElastoStart reduces the shock caused by the compression of the engine during starting. The compression shock is taken away from the user's joints and muscles through a spring or rubber element in the starter handle.
STIHL Electronic water control (A) - The electronic water control system can be operated via simple buttons while the engine is running. The water then switches on and off during cutting automatially, depending on engine speed.
The water volume can be regulated by simply pressing the plus / minus buttons, ensuring optimum dust suppression at the touch of a button.
Pre-separation air filtration system - STIHL long-life air filtration systems with pre-separation achieve perceptibly longer filter life compared with conventional filter systems.
Air drawn in is swirled. The larger, heavier particles are ejected. The pre-cleaned air is routed to the air filter via the pre-separator duct.
Semi automatic drive belt tensioning - Light, consistent re-tensioning increases the service life of the belts and shaft bearings.
Displacement cm³ 72,2
Power output kW/bhp 3,9/5,3
Weight kg 1) 10,2
Sound pressure level dB(A) 2) 98,0
Sound power level dB(A) 2) 112,0
Vibration levels left/right m/s² 3) 2,4/2,0
Cutting wheel mm/in 350 / 14
Maximum cutting depth mm 125
Total length cm 73
1) Without cutting wheel,2) Power factor according to DIR2006/42/EC=2.5(dB(A)),3) (K) factor according to Dir. 2006/42/EC = 2m/s²
